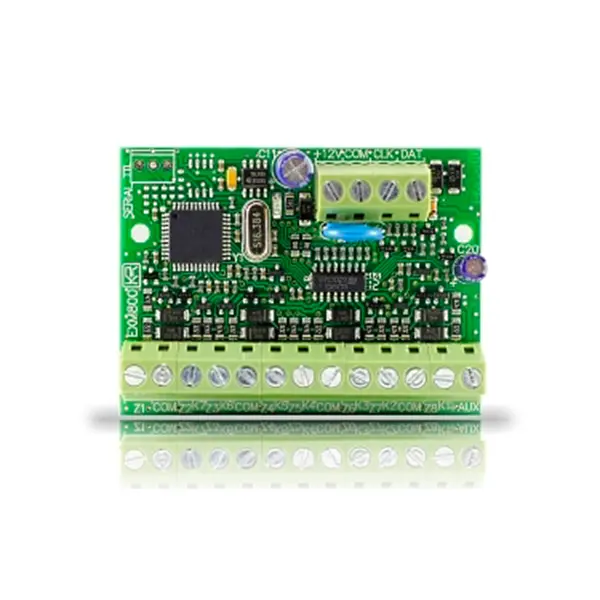

Expansion module EXM800 has 8 terminals, which can be programmed as a combination of inputs (zones) and outputs (PGM) . Maximum 8 zones or 7 PGM plus 1 zone can be programmed.
| Features | EXM800 |
| Description | Zone & PGM module |
| Product type | Alarm system module |
| On-Board zones | Up to 8 |
| On-Board (open collector type) PGM | Up to 7 (depends on selected zones) |
| Data bus protocol | KRBUS |
| Zone loop (detector) type | NC, NO, NC/EOL, NO/EOL, NC/DEOL, NO/DEOL |
| Maximum wiring distance to CP | 300 m |
| Power supply | 9 – 14 V |
| Voltage measurement on module | Yes |
| Current consumption | 15 mA |
| Maximum current into -PGM | -0.075 A |
| Maximum total current into all -PGM’s | -0.5 A |
| Overall dimensions W x H in mm | 67 x 50 |
| Environmental compliance | ROHS |
| Operating temperature | Nuo -10oC iki +50oC |
| Production status | In production |
| Interface with PC (programming, firmware update) | – |
| Latest firmware version | v.2.00 |
