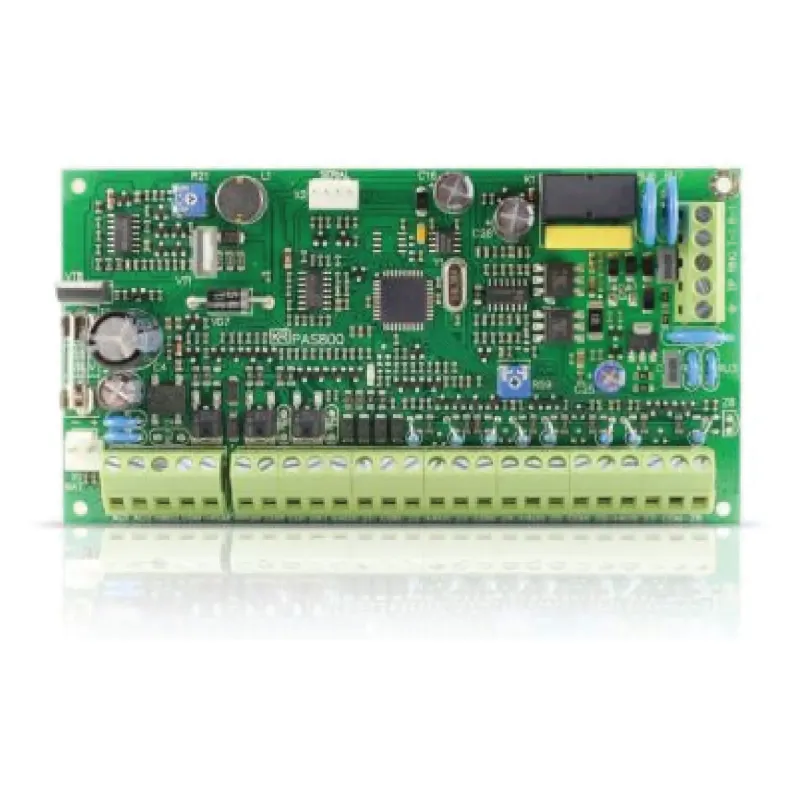

SECOLINK INTRUDER ALARM PANEL does all necessary functions and is suited for the protection of apartments and offices. This control panel is supplemented with a function of calling user’s phone. More technical information can be found in the table below. Secolink Intruder alarm panel PAS series Secolink Intruder alarm panel PAS series are designed for small businesses and individual property protection. Currently, these models are being manufactured: PAS808M, PAS816, PAS832, P16, P32, P64 that control 8, 16, 32, 64 intrusion detection sensors (zones), respectively. Secolink Intruder alarm panel models can protect up to 4 partitions (areas) and, depending on the model of the panel, (minus panels) can be controlled by 5 or up to 31 users. More technical information can be found by clicking on the left side menu bar “Control panels”.
Secolink Intruder alarm panel Performs all necessary functions and is suited for the protection of apartments and offices. This control panel is supplemented with a function of calling user’s phone. More technical information can be found in the table below.
| Features | PAS808M | PAS816 | PAS832 |
| Alarm system concept | Wired modular system | Wired modular system | Wired modular system |
| On-board wired zones | 8 | 8/16 (doubling) | 8/16 (doubling) |
| 2-wire smoke detector input | – | – | – |
| On-board wireless zones | – | – | – |
| Maximum zones in system | 8 | 16 | 32 |
| On-board PGM | 3 | 3 | 3 |
| Maximum PGM in system | 8 | 16 | 16 |
| User + installer codes | 5+1 | 31+1 | 31+1 |
| Duress code | X1, X2, X3, X4 (when X4 = X4 + 1) | ||
| Defaulting user code | Yes | Yes | Yes |
